Brand Name : | CENTERSKY |
Model Number : | 3PEI 20---3PEI 120 |
Certification : | ISO, ROHS, |
Price : | USD 1.1 KG ---USD 1.6 KG |
Payment Terms : | L/C, T/T, D/P |
Delivery Time : | 8-15 DAYS |

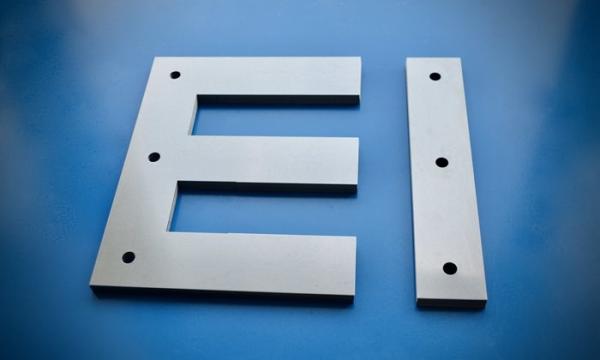

Application of 3 phase EI lamination
EI 240 transformer lamination
1) Electrical equipment of medium & Small industrial electric
motors
2) Compressors for household appliances
3) Power transformers
4) Welding machine transformers
5) Current regulators
Features of 3 phase EI lamination:
1) Low core loss and high magnetic flux density
2) High dimension accuracy, high surface quality and high stacking
coefficient
3) Insulation film on surface, sound insulate on properties and
process ability
TYPE | a | b | c | d | e | holes | aperture |
EI_28 | 28 | 4 | 6 | 8 | 17 | ||
EI_35 | 35 | 5 | 7.5 | 10 | 19.5 | ||
EI_41 | 41 | 6 | 8 | 13 | 21 | ||
EI_42 | 42 | 7 | 7 | 7 | 14 | ||
EI_48 | 48 | 8 | 8 | 16 | 24 | ||
EI_50 | 50 | 8 | 9 | 16 | 25.5 | ||
EI_57 | 57 | 9.5 | 9.5 | 19 | 28.5 | 4 | 4 |
EI_60 | 60 | 10 | 10 | 20 | 30 | 4 | 5 |
EI_66 | 66 | 11 | 11 | 22 | 33 | 4 | 4 |
EI_76.2 | 76.2 | 12.7 | 12.7 | 25.4 | 38.1 | 4 | 5 |
EI_78 | 78 | 13 | 13 | 26 | 39 | 4 | 5 |
EI_84 | 84 | 14 | 14 | 28 | 41 | 4 | 6 |
EI_85.8 | 85.8 | 14.3 | 14.3 | 28.6 | 42.9 | 4 | 5 |
EI_96 | 96 | 16 | 16 | 32 | 48 | 4 | 6 |
EI_105 | 105 | 17.5 | 17.5 | 35 | 52.5 | 4 | 6 |
EI_108 | 108 | 18 | 18 | 36 | 54 | 4 | 5.5 |
EI_114 | 114 | 19 | 19 | 38 | 57 | 4 | 6 |
FAQ:
1. Q: Can I get some samples?
A: Yes, sample order is available for quality checking and market test.
2. Q: What's the delivery time?
A: Sample order needs 2-3 days. Formal order needs 8-15 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes, we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes, different models can be mixed up.
![]() |
