    Ui Electrical Iron Laminate Magnetic Transformer Core Sheet Silicon Steel

    Ask Lasest Price
    Brand Name : CENTERSKY
    Model Number : UI 20---UI 100
    Certification : ISO, ROHS,
    Price : USD 1100 KG ---USD 1600 KG
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 1500 MT PER MONTH
    Delivery Time : 8-15 DAYS
    • Product Details
    • Company Profile

    Ui Electrical Iron Laminate Magnetic Transformer Core Sheet Silicon Steel

    Introduction:

    Jiangyin CENTERSKY, manufacturing pioneer of silicon steel EI lamination, production capacity 1500mt per month, The entire range of products offered by us is very popular in the markets for their affordability and high durability nature.

    The products can be customized as per the specification provided by our customers. We have got the track record and team expertise to make things happen.

    Single phase UI core is made by the silicon steel strip. The model of UI lamination in standard sizes is from

    EI-20 to UI-360.The gap sizes of transformer lamination core can be customized.


    SIZE

    EI-35 to EI-360 (MONO PHASE)

    3PEI-17.5-3PEI-100 (TRIPLE PHASE)

    THCIKNESS

    0.23-0.35MM (CRGO)

    0.35-0.5MM (CRNGO)

    MATERIAL

    M3, M4, M5, M6 (CRGO)

    35W250, 35W300, 35W400 (0.35MM) M330-35A

    50W250, 50W310, 50W400, 50W470, 50W600, 50W800 (0.5MM) M400-50A 26M19

    FREQUENCY50HZ-60HZ
    COATING

    T2 Inorganic ( CRGO )

    T4 Semi-organic (CRNGO)

    PROCESS TECHNOLOGYANNEALLING & WITHOUT ANNEALLING
    APPLICATION

    CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER,

    POWER TRANSFORMER; BALLAST, REACTOR,INDUCTOR,INVERTER POWER,

    VOLTAGE STABILIZERS.etc.

    CENTERSKY is a manufacturer who produce single phase / three phase lamination: EI, UI, 3PEI.etc. The thickness can be from 0.23-0.5mm,CRNGO and CRGO from famous steel factory.

    Any comments are welcome.

    EI type silicon steel lamination transformer iron core

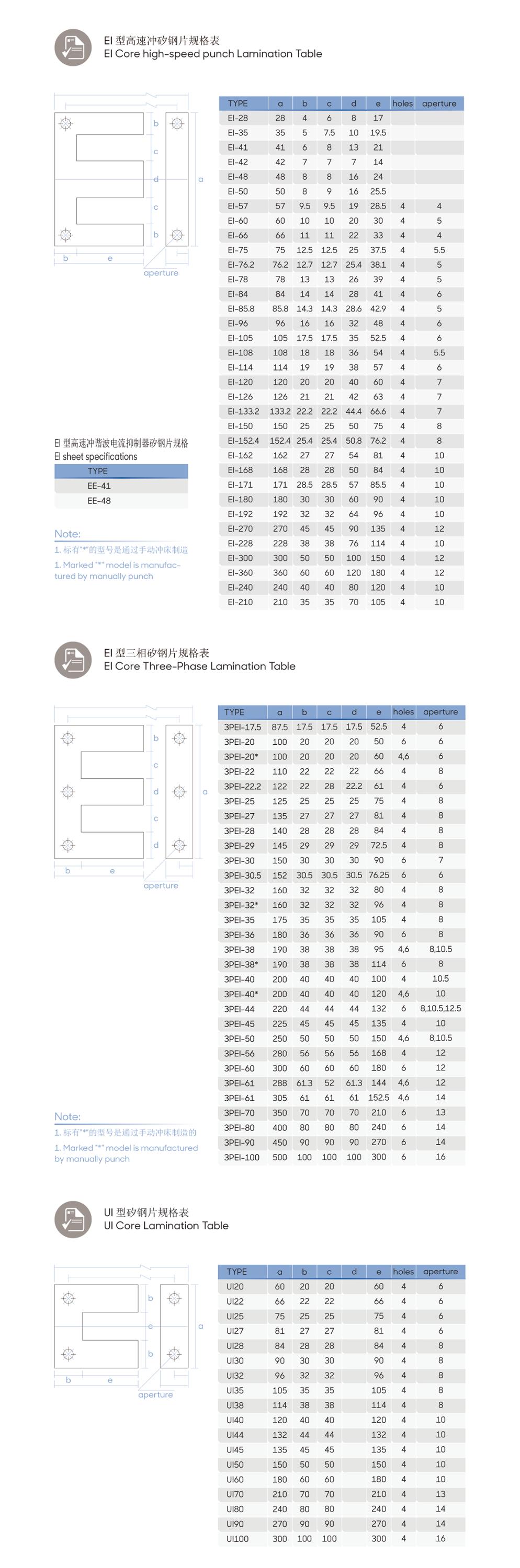

    Catalogue:

    EI type silicon steel lamination transformer iron core

    Company information:

    Jiangyin Centersky was established in 2000. Main business is manufacturing silicon steel EI lamination, UI lamination, cutting lamination.

    Our capacity is 15000mt per year. We have 15 years' export experience.


    Exhibition:


    FAQ:

    1. Q: Can I get some samples?

    A: Yes, sample order is available for quality checking and market test.

    1-10kg of sample is free.


    2. Q: What's the delivery time?

    A: Sample order needs 2-3 days. Formal order needs 8-15 days.


    3. Q: What's your payment terms?

    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.


    4. Q: Do you have the prodcts in stock?

    A: Yes, we will keep some general ones in stock.


    5. Q: Can I mix different models in one container?

    A: Yes, different models can be mixed up.
